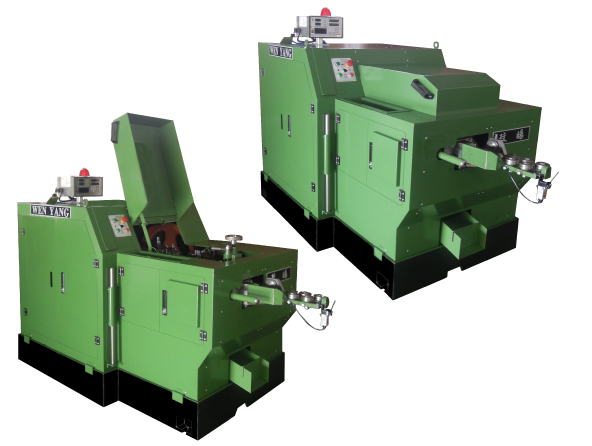

1-Die 2-Blow Screw Head Making Machine
1-Die 2-Blow Screw Head Making Machine - With P.K.O. on each punching pocket. (from 1st to 2th punch)

With P.K.O. on each punching pocket. (from 1st to 2th punch)

1-Die 2-Blow Screw Head Making Machine

1-Die 2-Blow Screw Head Making Machine

Specifications

Model Specification(mm) Speed(pcs/min) Power(HP) N.W.(KG) Main Die(mm) Punch Die(mm) Cutting Die(mm)
WY-1538 5 x 38 130~160 3 1,400 Φ34.5 Φ31 Φ19
WY-1552 5 x 52 130~160 3 1,400 Φ34.5 Φ31 Φ19
WY-1564 5 x 64 130~160 3 1,400 Φ34.5 Φ31 Φ19
WY-2076 6 x 76 100~120 5 2,100 Φ42.8 Φ36 Φ25
WY-20102 6 x 102 75~90 5 2,800 Φ45 Φ36 Φ25
WY-20165 6 x 165 46~58~63 7.5 4,100 Φ60 Φ38 Φ25
WY-20200 6 x 200 40~52~58 7.5 4,800 Φ60 Φ38 Φ25
WY-25102 8 x 102 65~85 7.5 4,800 Φ60 Φ38 Φ28
WY-25125 8 x 125 50~70 7.5 5,000 Φ54 Φ38 Φ28
WY-25152 8 x 152 50~70 10 5,300 Φ60 Φ38 Φ32
WY-3076 10 x 76 70~80 15 7,500 Φ80 Φ50 Φ40
WY-30152 10 x 152 52~60 15 8,100 Φ80 Φ50 Φ40
WY-30200 10 x 205 32~48 15 8,500 Φ80 Φ58 Φ38
WY-40100 13 x 100 60~70 25 9,900 Φ93 Φ68 Φ48
WY-40200 13 x 200 38~44 30 14,000 Φ98 Φ68 Φ48
WY-40300 13 x 300 26~30 30 16,500 Φ98 Φ68 Φ48
