Adjustable independently from 1st to 4th punch.(Optional)
Adjustable independently from 1st to 2th punch.(Optional)

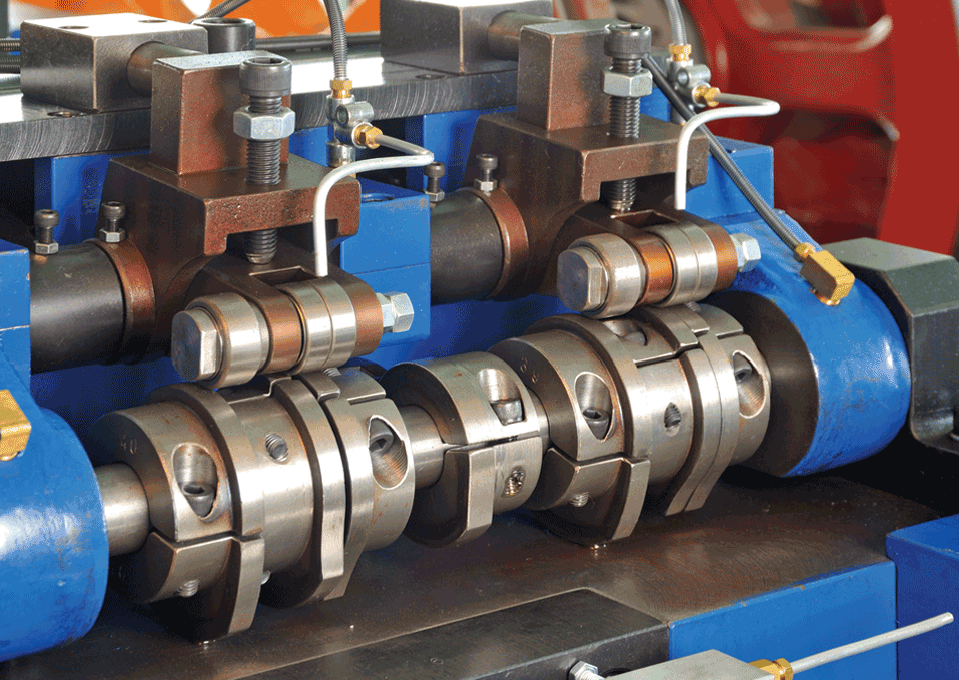

With P.K.O. on each punching pocket.(from 1st to 6th punch)

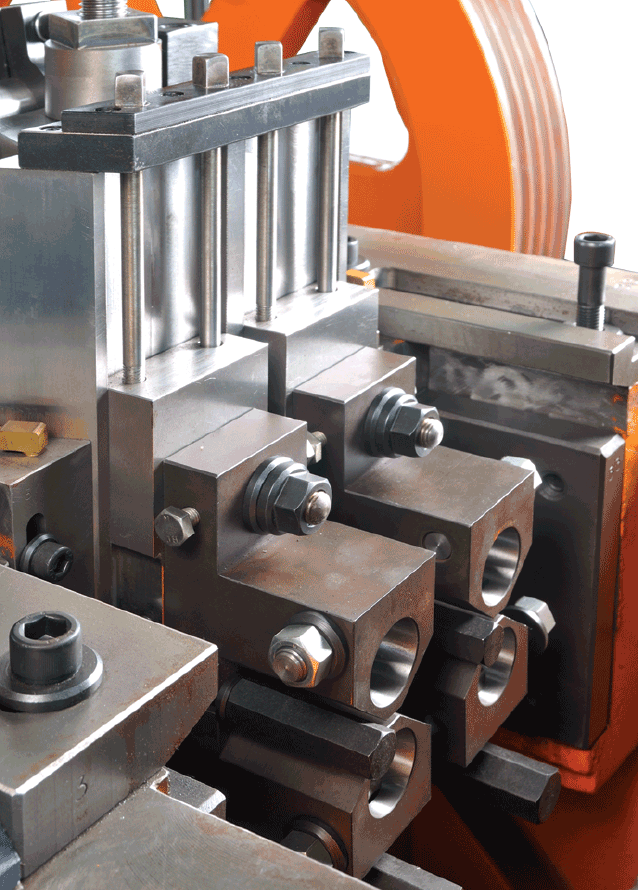

With 2 sets of clamp separately

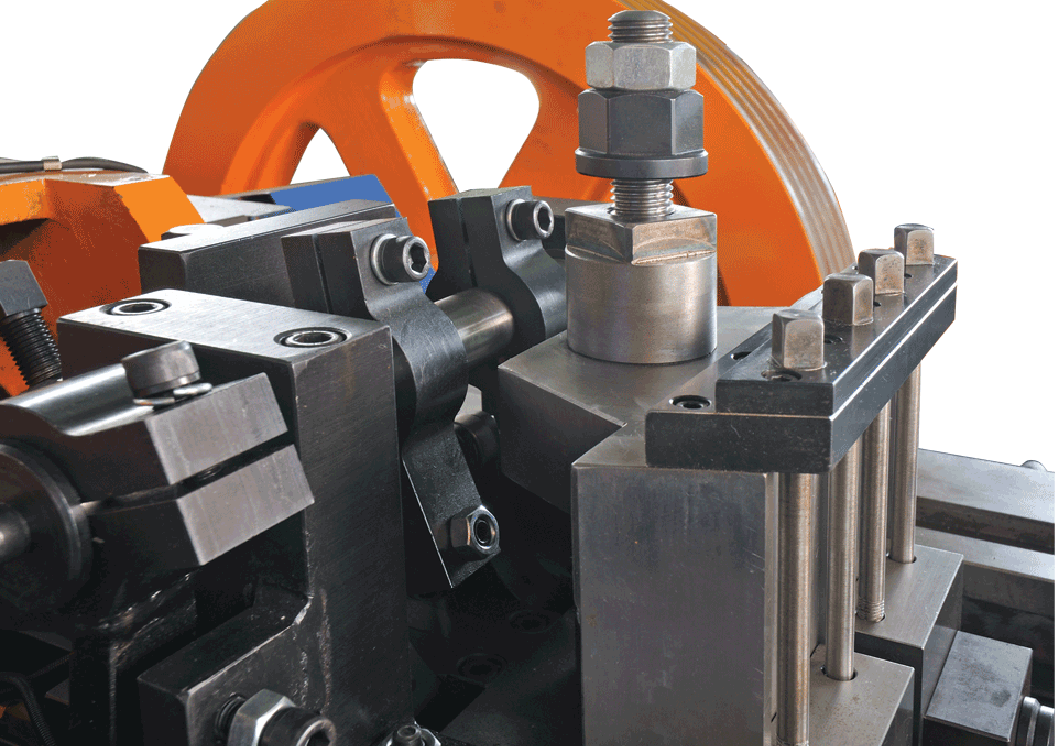

Newly clamping plate

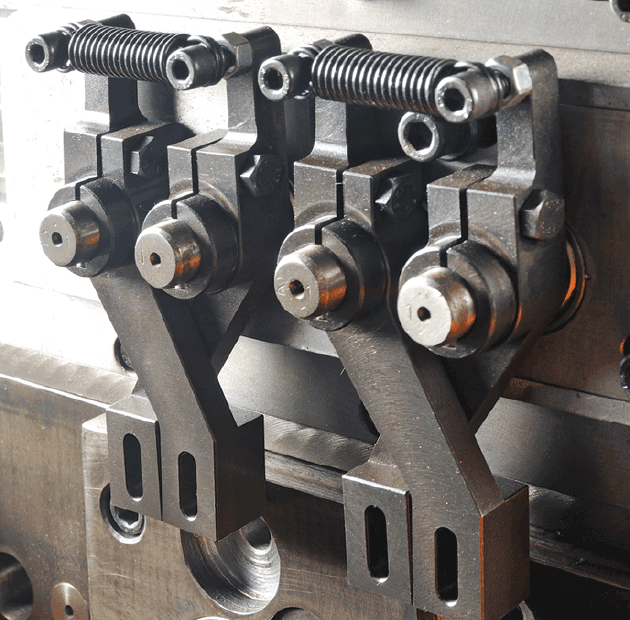

Knock out system
| Model | Specification(mm) | Speed(pcs/min) | Power(HP) | N.W.(KG) | Main Die(mm) | Punch Die(mm) | Cutting Die(mm) |
|---|---|---|---|---|---|---|---|
| MT-1115 | 5 x 38 | 60~80 | 3 | 2,700 | Φ38x81 | Φ28x80 | Φ24x40 |
| MT-1120 | 6 x 50 | 50~70 | 5 | 4,000 | Φ43x97 | Φ36x90 | Φ28x40 |
| MT-1125 | 8 x 75 | 40~60 | 10 | 7,400 | Φ58x126 | Φ40x110 | Φ38x40 |
| MT-1130 | 10 x 100 | 30~50 | 15 | 9,800 | Φ82x151 | Φ62x130 | Φ38x60 |
| MT-1130L | 10 x 155 | 30~45 | 25 | 13,500 | Φ82x236 | Φ62x130 | Φ38x60 |
| MT-1140 | 13 x 155 | 30~45 | 30 | 14,500 | Φ82x236 | Φ68x190 | Φ48x60 |

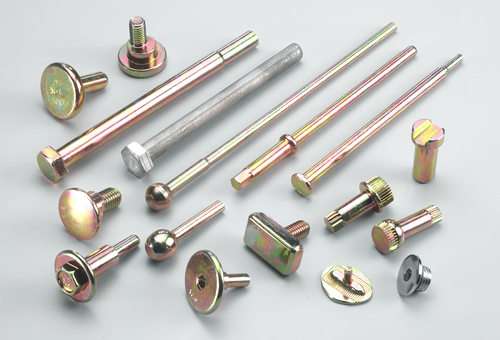

Remark：Available for trimming and semi-tubular devices
