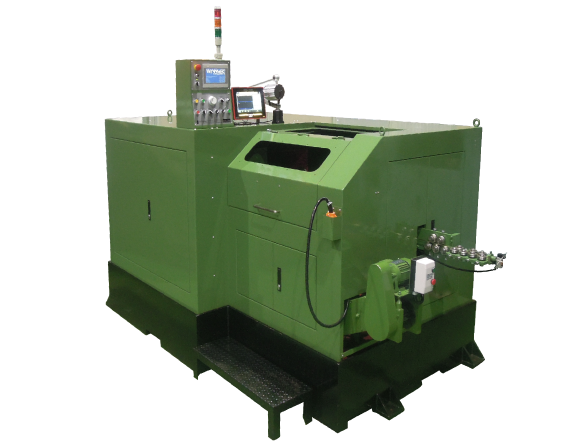

2-Die 2-Blow Screw Head Making Machine
2-Die 2-Blow Screw Head Making Machine

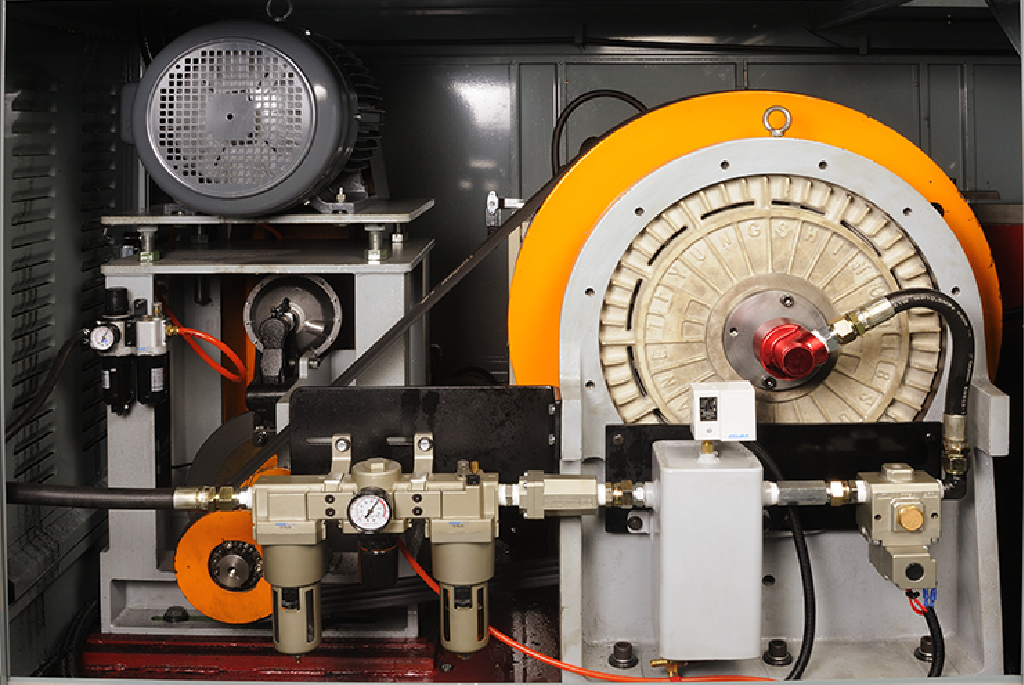

2-Die 2-Blow Blot Screw Head Making Machine - Air Clutch Brake System

Air Clutch Brake System

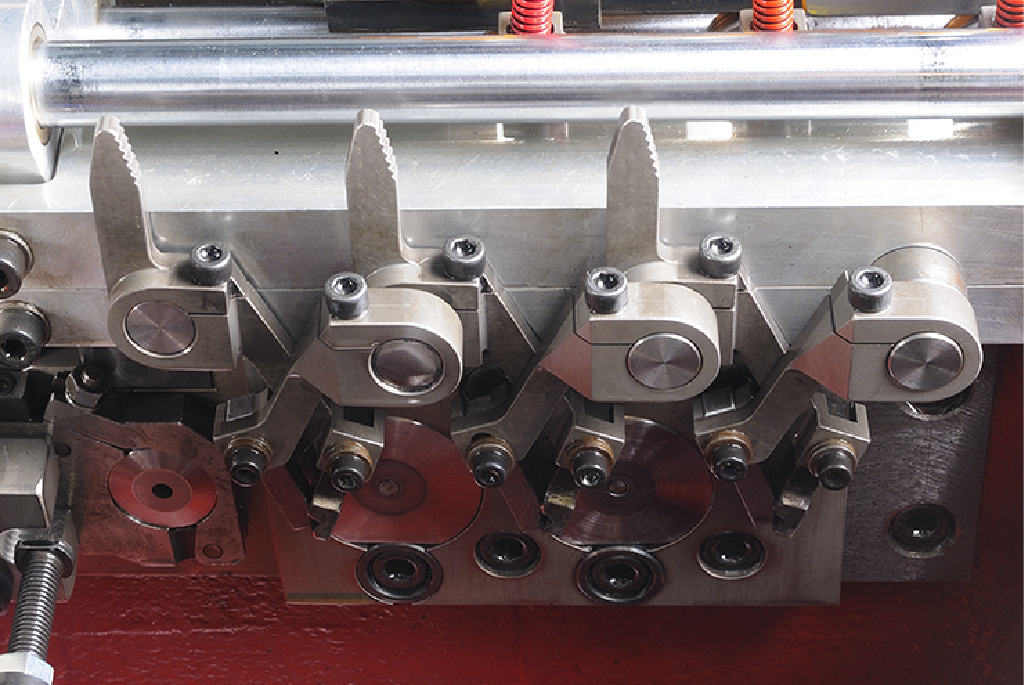

2-Die 2-Blow Blot Screw Head Making Machine - 3 Sets Of Gripper

3 Sets Of Gripper

2-Die 2-Blow Screw Head Making Machine

2-Die 2-Blow Blot Screw Head Making Machine

Features

  1. Round Cutting off mechanism to ensure the cutting surface of the wire is neat. Also with active cutter, when the wire diameter is different, only need to change tungsten steel.
  2. The cutting die is installed in the die holder, which can easy adjusted back and forth to ensure the cutting gap and cutting quality.
  3. There is one more main die than one die two blow heading machine, because one more process is needed to produce products with a right-angled shoulder.
  4. The two punch dies are juxtaposed and independent, easy to adjust, and the two punch dies move horizontally without up and down movement, so the machine is very stable during high-speed production. during high-speed production.
  5. The production pressure is distributed to two main dies during screw pressing to extend tooling life.

Standard Equipment

  1. Air Clutch Brake System
  2. 3 Sets Of Gripper
  3. Air Brake System
  4. Conveyor
  1. Full Cover
  2. Manual Pulse Generator
  3. Speed display, Wire short feed, end of material, insufficient lubricating oil and insufficient air pressure detection.

Specifications

Model Forging Station Gripper Cut-Off Dia.MAX.
(mm)		 Cut-Off Length
(mm)		 Kick-Off Length MAX
(mm)		 P.K.O.Length Max
(mm)		 Cut-Off Quill
(DxL)(mm)		 Main Die Hole
(DxL)(mm)		 Dies Pitch
(mm)		 Punch Hole
(DxL)(mm)
WY-205 2 3 5 15-55 45 10 Φ20x30 Φ38x60 48 Φ32x60
WY-206 2 3 7 20-75 70 15 Φ28x40 Φ50x86 60 Φ42x90
WY-206L 2 3 7 28-105 90 15 Φ28x40 Φ50x105 60 Φ42x115
Model Ram Stroke
(mm)		 Forging Power
(ton)		 Product
Size		 Product Max.L
(mm)		 Product Max.L
(mm)		 Product Open
Upset Dia(mm)		 Max.Output
(PSC/MIN)		 Main Motor
(hp)		 Approx.W.T.
(kg)
WY-205 100 12 3/16(M4) 40 10 12.5 300 7.5 N/A
WY-206 120 25 1/4(M6) 50 12 15 300 10 5,545
WY-206L 160 25 1/4(M6) 75 20 20 240 10 N/A
