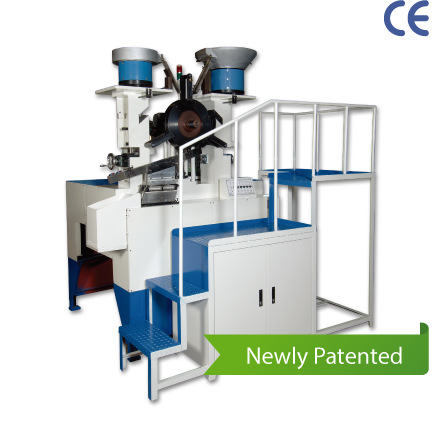

Screw Washer Assembling Machine

Standard Type Specifications

Model	Screw Length(mm)	Speed(pcs/min)	Power(HP)	N.W.(KG)
MT-1201	M1.4 x 20L	250~300	1/4	450
MT-1202	M2 x 20L	200~300	1/4	450
MT-1203	M3 x 30L	200~300	1/4	600
MT-1206	M6 x 50L	150~220	1/2	1,200
MT-1208	M8 x 75L	130~180	1/2	1,400
MT-1210	M10 x 75L	130~180	1/2	1,500
MT-1212	M12 x 75L	130~180	1/2	1,600

Special Model for Long Screws

Long Length Type Specifications

Model	Screw Length(mm)	Speed(pcs/min)	Power(HP)	N.W.(KG)
MT-1212L	M6~M14 x 120L	80~150	1/2	2,200
MT-1216L	M8~M16 x 60~160L	80~150	1/2	2,300
MT-1220L	M10~M18 x 60~200L M12~M20 x 60~200L	70~100	1/2	2,500
