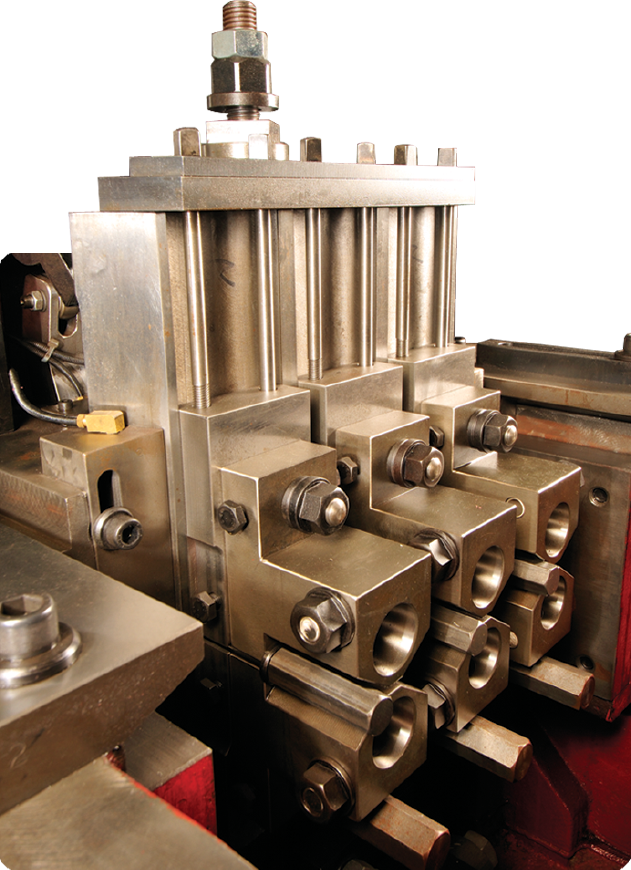

3-Die 6-Blow Blot Parts Former - Adjustable independently from 1st to 6th punch.(Optional)

Adjustable independently from 1st to 6th punch.(Optional)

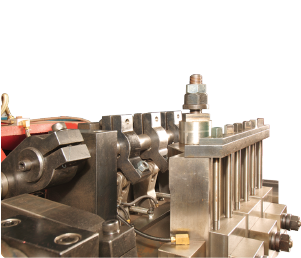

3-Die 6-Blow Blot Parts Former - Adjustable independently from 1st to 4th punch.(Optional)

Adjustable independently from 1st to 4th punch.(Optional)

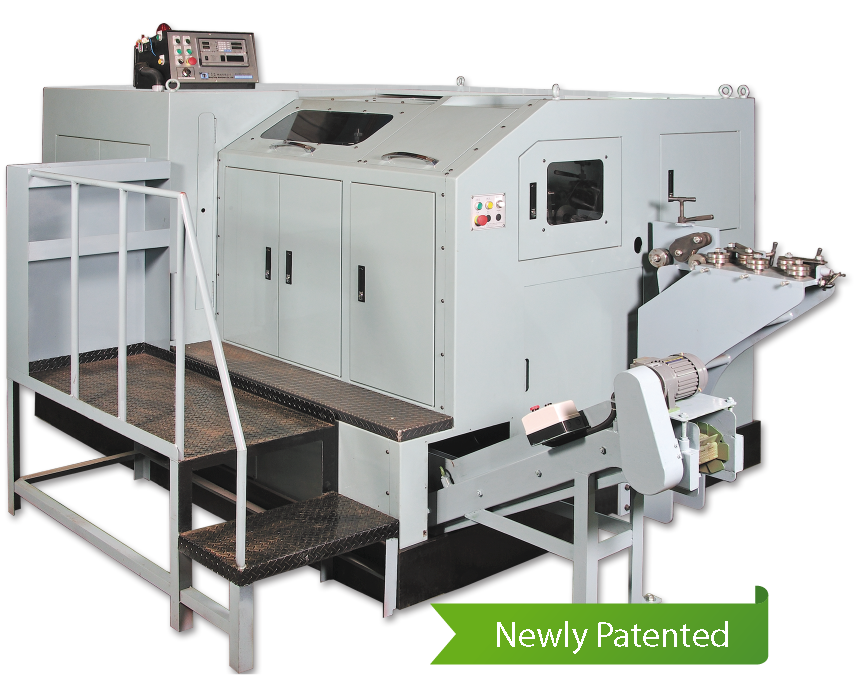

3-Die 6-Blow Blot Parts Former
3-Die 6-Blow Blot Parts Former - With P.K.O. on each punching pocket.(from 1st to 6th punch)

With P.K.O. on each punching pocket.(from 1st to 6th punch)

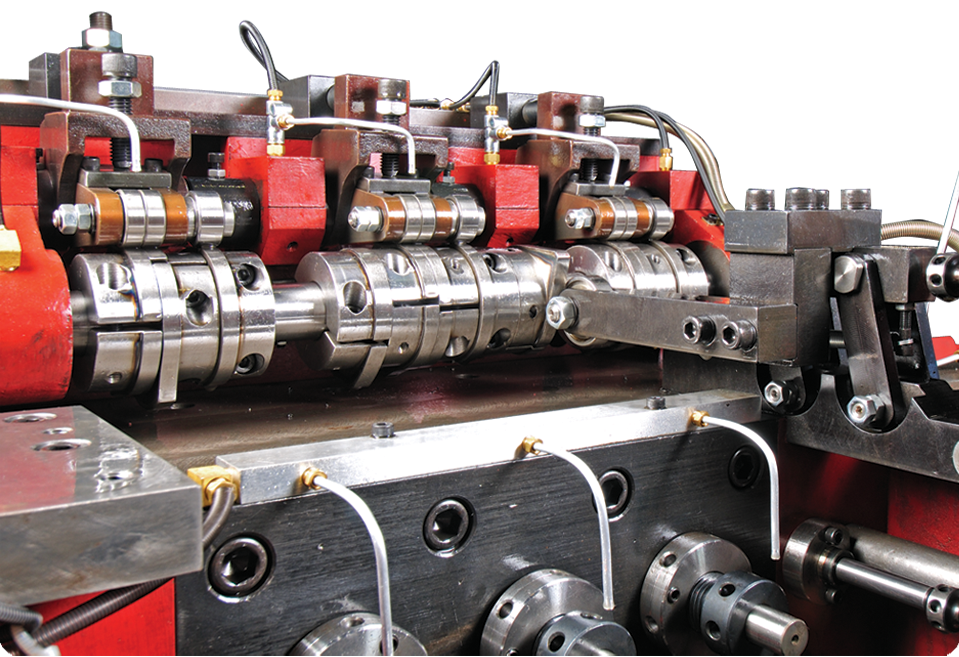

3-Die 6-Blow Blot Parts Former - With 3 sets of clamp separately

With 3 sets of clamp separately

3-Die 6-Blow Blot Parts Former - Knock out system

Knock out system

3-Die 6-Blow Blot Parts Former - Newly clamping plate

Newly clamping plate

3-Die 6-Blow Blot Parts Former
3-Die 6-Blow Blot Parts Former

3-Die 6-Blow Blot Parts Former

Specifications

Model Specification(mm) Speed(pcs/min) Power(HP) N.W.(KG) Main Die(mm) Punch Die(mm) Cutting Die(mm)
WY-1320 M6 x 50 50~70 7.5 6,000 Φ43x97 Φ36x90 Φ28x40
WY-1325 M8 x 75 35~60 10 9,000 Φ58x126 Φ40x110 Φ28x40
WY-1330 M10 x 100 30~50 20 11,300 Φ82x151 Φ62x130 Φ38x60
WY-1340 M13 x 155 25~45 30 18,000 Φ82x236 Φ68x190 Φ48x60

Remark:Available for trimming and semi-tubular devices
